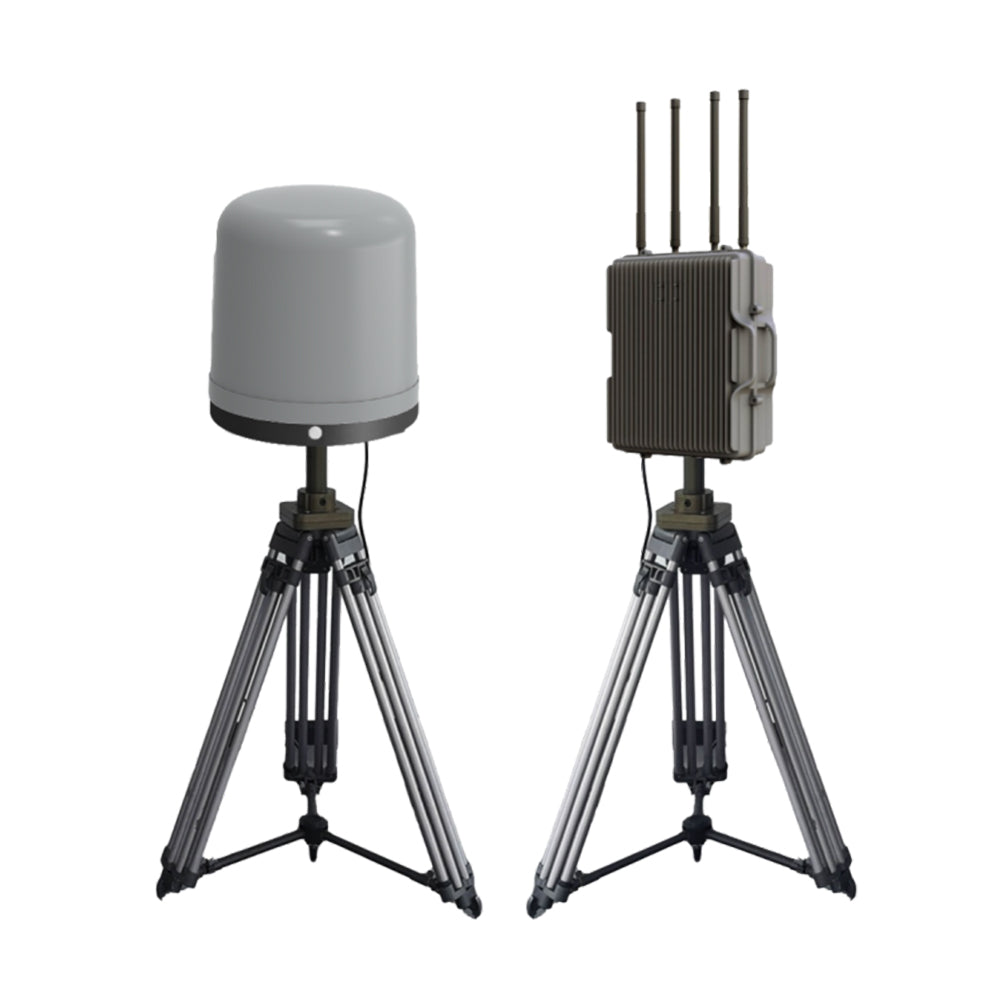

ZJ-TY0209 Fixed UAV Detection And Jamming Equipment

Basic Info

The fixed UAV detection and control integrated machine is a radio passive automatic detection device that supports 360-degree all-round detection coverage. It is equipped with intelligent functions such as single-device positioning, advanced early warning, black and white lists, ID identification, precise strike, precise defense, and also supports viewing detection results, spectrum analysis, data capture, etc

Product feature

Detection system:
1. Key detection frequency bands: 840MHz, 915MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
2. Identification response time: ≤2s
3. Detection height: 0m～1000m
4. Detection distance: ≥ 4km
5. Horizontal detection azimuth: 360°, vertical detection range: -40° ~ 90°
6. Multi-target recognition: The number of detected and identified drones should be ≥ 30
7. Accurate recognition: Identify and distinguish multiple targets Flying a drone of the same brand, model, and frequency band. If the same drone is turned off and turned on again, the detected electronic fingerprint ID (individual identification number) will not change.
8. Detection function: 2 or more devices When the network is working, the UAV's invasion direction, distance, longitude and latitude, speed, flight trajectory and other information are displayed
9. Working temperature: -40℃～+60℃
10. Protection level: ≥IP65
11. UAV direction finding accuracy (Root mean square): ≤3°
Interference system:
1. Working frequency: 900MHz, 1.4 GHz, 1.5GHz, 2.4GHz, 5.8GHz;
2. Interception distance: ≥3km Interference angle: Horizontal direction: 360°
3. Precision strike : Ability to accurately attack designated UAVs among multiple (not less than 2) UAV targets of the same model, same operating frequency band, and same orientation without affecting the normal controlled flight of other non-designated UAVs
4. Precision strike: capable of precision strike against non-whitelist drones set up by radio detection equipment
5. Protection level: ≥ IP65
6. Working temperature: -40℃～55℃
