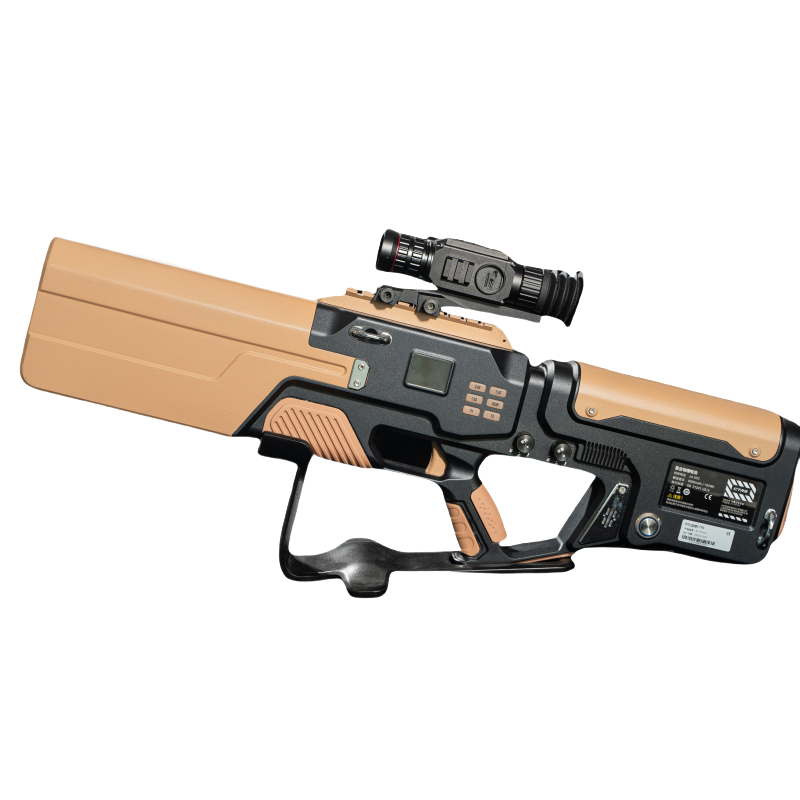

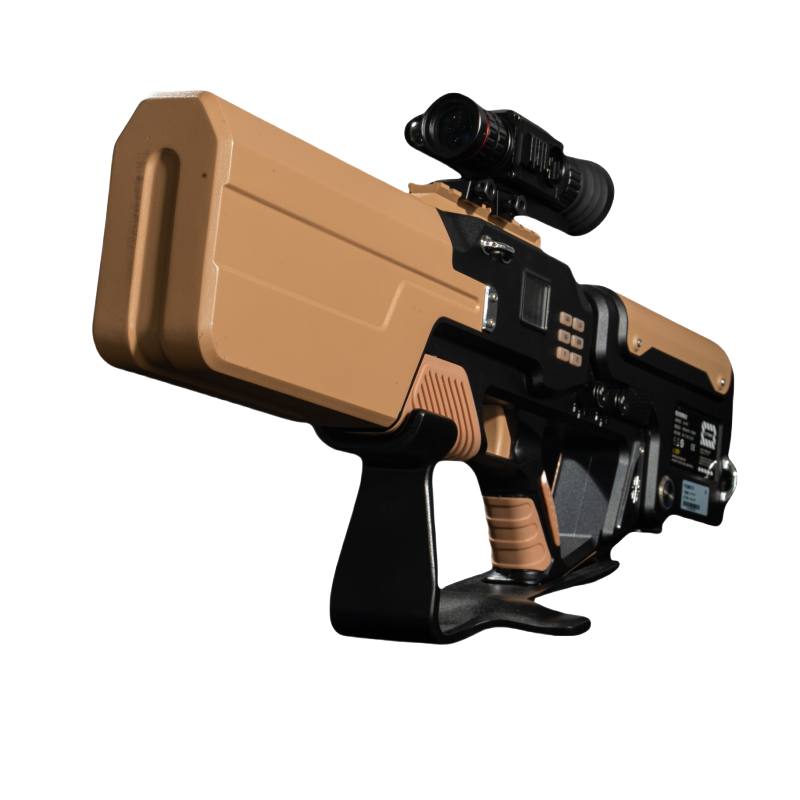

ZJ-TY2101 Portable UAV Detection and Jamming Integrated equipment

Basic Info

Basic Info

ZJ-TY2101 is a new type of UAV management and control device integrating detection, countermeasure and alarm functions. It features small size, light weight and comprehensive functions, while having good mobility, which can meet the requirements of low-altitude defense and security for daily inspections, large-scale events, important meetings and other scenarios.

Product feature

1. Detection frequency band range: at least including 2.4GHz, 5.8GHz;
2. Detection distance: ≥2KM;
3. Detection coverage: 360°;
4. Discovery time ≤3s;
5. Controlled frequency band: 900MHz, 1.6GHz , 2.4GHz, 5.8GHz;
6. Interference distance: ≥1.5KM;
7. The output power (average power) of interference signals in each frequency band should be ≤20W
8. Equipment power supply mode: built-in lithium battery (battery capacity 24V 8000mAH); can be externally connected Power supply;
9. Detection mode working time ≥ 8 hours;
10. Has voice providing function;
11. The device has a display screen that can visually display the UAV’s signal frequency, bandwidth, signal strength, UAV model, Detection mode, countermeasure mode and other information;
12. Equipped with USB interface, supports USB data cable output data;
13. Equipped with Picatinny rail, can be installed with video scope/mobile phone/other equipment;
14. Protection level: IP65 ;
15. Volume: ≤ 780mm long x 100mm wide x 280mm high; Weight: ≤ 5.6kg.
