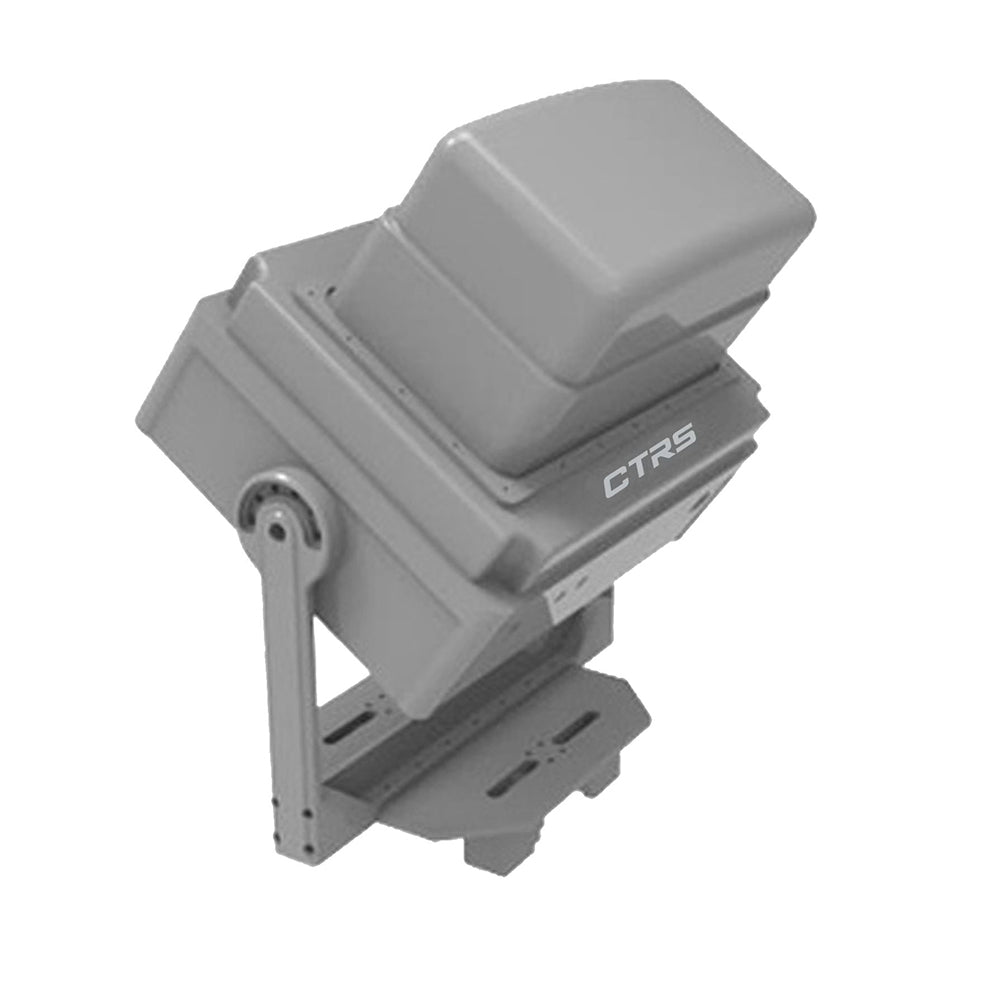

UAV passive detection equipment TY1821

Basic Info

ZJ-TY1821 has a high speed digital frequency hopping receiver with multiple frequency bands. It can receive the downlink signal (image transmission or digital transmission) from various UAVs (excluding military UAV) on the market, and then identify features and parameters, decode and analyze the protocol, thereby it can identify the distant UAV.
ZJ-TY1821 adopts exclusive receiver with special design. Compared to similar equipment which use a universal full bands receiver, ZJ-TY1821 enjoys high sensitivity and low false alarm. The detection distance is 0~8km. The detection angle can be configured from 45° to 360°。

Product feature

Detection angle: The horizontal plane can be configured from 45° to 180°, and the vertical plane angle is 100°. Conventional equipment configuration: 900MHz, 2.4GHz, 5.8GHz (other frequency bands of 400MHz-6GHz can be added on demand). Discovery time ≤ 6 seconds detection distance : 0 ~ 5 kilometers (under complex working conditions), 0 ~ 8 kilometers (under ideal working conditions) Angle measurement accuracy: precise angle measurement accuracy ≤ 3°, rough angle measurement accuracy ≤ 20° Data update cycle: 0.1s ~ 0.3s , 0.5s～12s (can be customized) Multi-target capability: Yes False alarm rate: 10-5 (under normal electromagnetic environment) Power supply mode: AC100-240V/50-60Hz or DC12V-62V Power consumption: 36W Directional passive detection Equipment volume: 330mm*400mm*340mm Weight: 10kg Protection level: IP67 Working environment: -40℃ - +60℃
