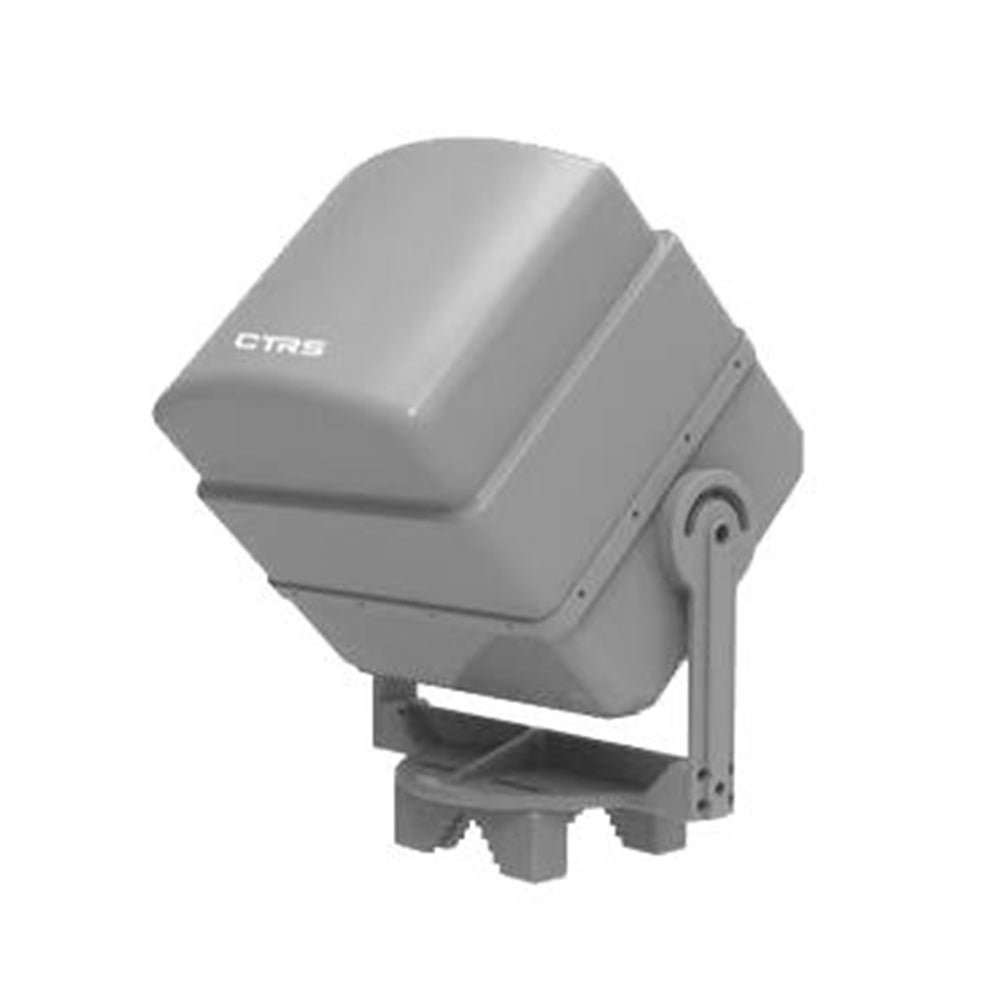

Distributed/Portable UAV Jammer TY1811

Basic Info

ZJ-TY1811 distributed UAV jammer is suitable for the area protection of relatively fixed sites of activity.The jamming angle of the equipment can be selected from 45°~180°, and the jamming radius can reach more than 4km.
 Equipment Features ：
 Block all frequency bands of UAV and satellite signal at present;
 Use multielement space composite beam. High energy utilization;
 The target will automatically return or hover before entering the protected area;
 Can be linked to the detection system;
 Lower radiation comparing with products in the industry;
 Support AC and DC power supply mode;
 Optional remote control operation mode;
 The erection of equipment is simple and convenient;
 IP67 waterproof and dustproof.

Product feature

1. Working angle: The horizontal plane of the interference host can be configured as 45° or 120°, and the vertical plane angle is 100°.
2. Controlled frequency band: Conventional equipment is equipped with four frequency bands: 900MHz, 1.6GHz, 2.4GHz, and 5.8GHz, which can be increased according to actual needs. Other frequency bands of 300MHz-6GHz
3. Transmit power of a single module: ≥40dBm
4. Control distance ≥3 kilometers
5. Power supply method: AC AC100-240V/50Hz-60Hz or DC24V
6. Volume: host 415mm*370mm*325mm
7. Weight: Host ≤15kg
8. Protection level: IP66 Working environment: -35℃ - +65℃
