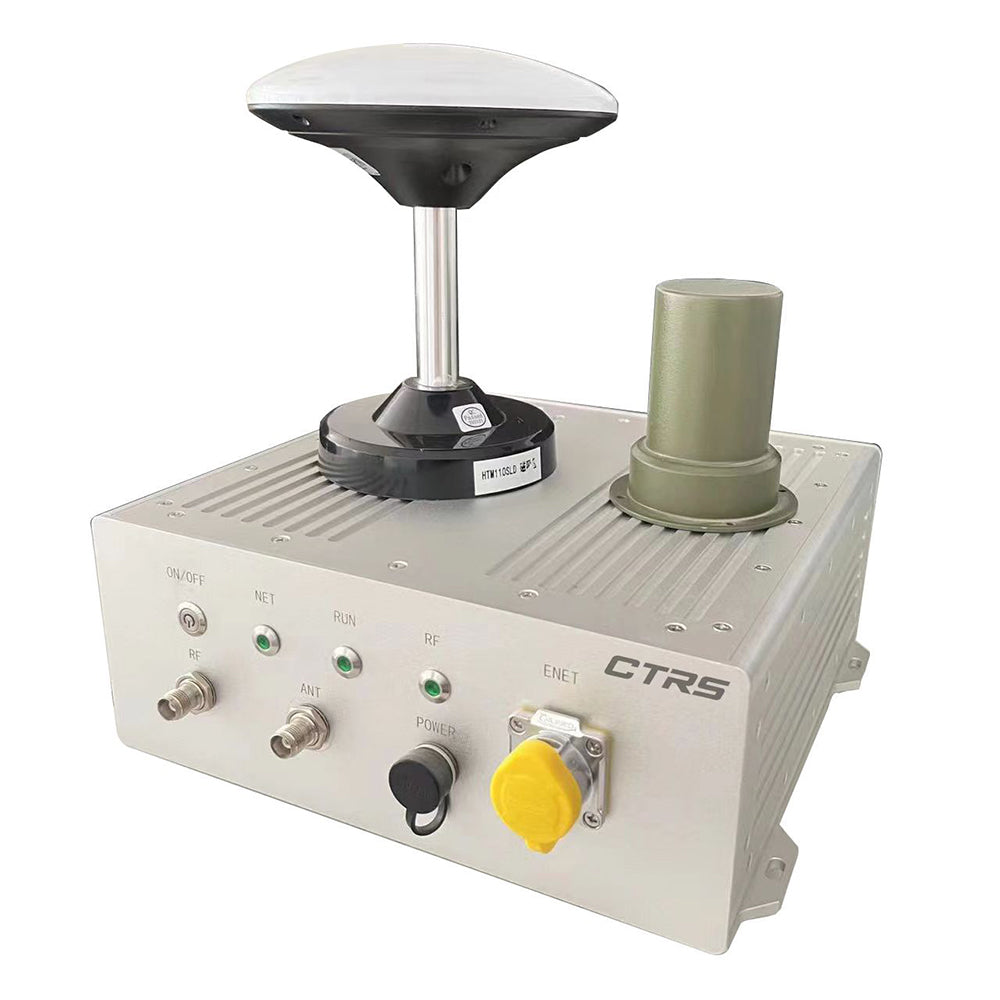

ZJ_TY2080 Fixed UAV navigation Inducing systemn

Basic Info

ZJ-TY2028 is a UAV navigation deception device developed specifically to address various security threats posed by "unauthorized/drone flights". It radiates low-power regenerated navigation satellite signals (with a power not exceeding 10dBm) to infiltrate the navigation system of "unauthorized/drone flights", thereby achieving interception and control over UAVs that rely on navigation systems for flight control. This prevents them from entering protected areas and ensures low-altitude security in such regions.

Product feature

1. Operating distance: Adjustable within 1000m (360 degrees under unobstructed conditions)
2. Signal transmission power: ≤10dBm (mW) (EIRP, single channel, under the condition that the device works at the maximum effective operating distance)
3. Operating frequency bands: Limited to GPS L1, GLONASS L1
4. Operating frequencies: Channel 1 (1574.9-1576.0) MHz; Channel 2 (1598.8-1604.7) MHz
5. Frequency tolerance: ≤±2×10⁻⁶
6. Spurious emission power: ≤-36dBm (30MHz-1GHz); ≤-30dBm (1GHz-26.5GHz)
7. Host weight: ≤7.5kg
8. Host dimensions: L≤255mm, W≤245mm, H≤100mm
9. Power supply: 220V AC
10. Startup time: ≤10min
11. Protection class: IP65
12. Operating temperature: -40℃ to +70℃
13. Response time for repelling UAVs: ≤10s
14. The device can work continuously for 24 hours without manual monitoring.
