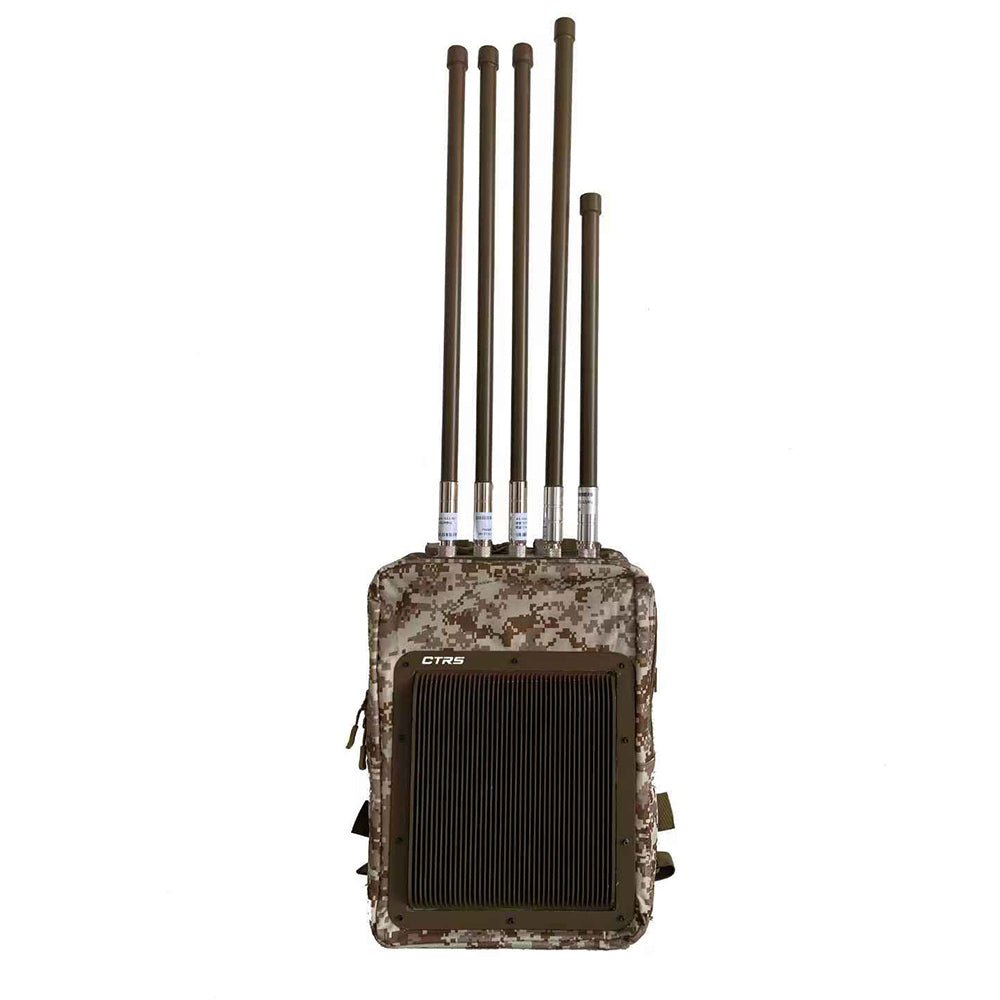

ZJ-TY0201 Knapsack UAV detection and Jamming integrated equipment

Basic Info

"ZJ-TY0201 is an integrated device for UAV signal detection and UAV jamming. Adopting an integrated design, it is built with high-speed digital frequency-hopping receivers covering multiple frequency bands. It can receive and identify the characteristic parameters of the downlink signals (image transmission or data transmission) of various types of UAVs on the market. While detecting UAVs, it can also perform radio jamming on UAV remote control signals and navigation signals, with dual modes of repelling and forcing landing.

1.Integration of UAV signal detection and UAV jamming;
2.Ultra-low power consumption, extremely easy to use;
3.Lightweight and compact, extremely easy to transfer between sites;
4.Passive detection without emission;
5.Omnidirectional detection and jamming, applicable to more usage scenarios;
6.Equipped with independently developed equipment and software, facilitating immediate technical update support;
7.Jamming with dual modes of repelling and forced landing;
8.Equipped with self-inspection function;
9.Passive detection with sound alarm."

Product feature

1. Detection frequency band range: 900MHz, 2.4GHz, 5.8GHz;
2. Detection radius: ≥1.5KM;
3. Interference frequency band range: 900MHz, 1.6GHz, 2.4GHz, 5.8GHz;
4. Interference radius: ≥1.5KM
5. Coverage: 360°;
6. Power supply method: built-in lithium polymer battery;
7. Working time ≥ 30 minutes;
8. Host volume: length, width and height ≤ 300mm*180mm*550mm (excluding antenna) length, width and height ≤ 300mm*180mm*1450mm (including antenna)
9. Host weight: ≤20kg 10. Protection level: IP66 Working environment: -35℃ - +55℃
